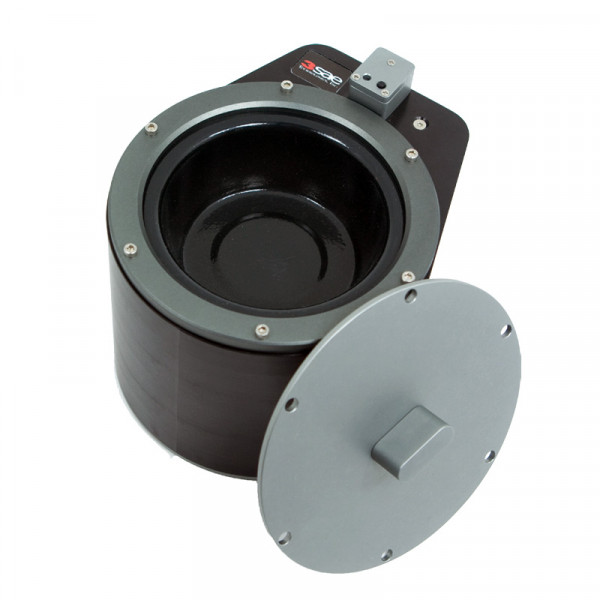

3SAE Large Bowl Ultrasonic Cleaner

SKU #479008 | MFR #ACC-01-0104
Purpose-built ultrasonic fiber cleaner that was designed specifically for fiber optic applications.
Request Quote
Request current lead time
Part Number
479008

3SAE LCleanerarge Bowl Ultrasonic

 Ultrasonic cleaning has long been the preferred means of cleaning optical fibers for critical application splicing. Use of an ultrasonic cleaner ensures ultimate cleanliness and is essential for maximizing post process optical fiber reliability. Previous ultrasonic technology was adapted from equipment designed for cleaning larger objects, and the results were sometimes not optimum for fiber.



The 3SAE Large Bowl Ultrasonic Cleaner is a purpose-built ultrasonic fiber cleaner that was designed specifically for fiber optic applications, such as optical fiber splicing and glass processing. Many years of splicing experience went into the functional, ergonomic design that ensures consistent cleaning results. Cleaning is accomplished using a sweeping frequency that is optimized to target the various sizes of particles that adhere to the fiber.



Operation of the 3SAE Ultrasonic Cleaner is easy and intuitive. The unique wide bowl design easily accommodates cleaning fiber spans or components up to 75 mm in length. Audible and visual indicators signal when the fiber should be removed.



The intensity of cleaning can be adjusted quickly and easily to optimize results for different fiber types and sizes. Programmable presets can be provided for special applications.



Product Features

  • Compact, low maintenance bench top design
  • Large, wide bowl for cleaning long fiber lengths or components
  • Fast cycle time
  • One touch operation
  • Adjustable cleaning times
  • Frequency tuned oscillation
  • Solid top cover reduces contamination and evaporation
  • Grounded, universal-input power external supply with worldwide
  • safety agency approvals
  • Operator independent



Technical Specs

  • Dimensions: 140 (W) x 165 (D) x 135 (H) mm
  • Weight: 1.4 kg
  • Power Source: Input: 100 - 240 VAC, 50/60 Hz
  • Cycle Time: 3 - 48 s
  • No Calibration Required
  • No PC Connection Required



Product Qty
Large Bowl Ultrasonic Cleaner  1
Standard Package
Power Supply 1
Power Cord 1
User's Manual  N/A
Alcohol Squeeze Bottle 1











More Information
Manufacturer 3SAE
Manufacturer Part Number ACC-01-0104
Product Series 3SAE Ultrasonic Cleaners
Fiber Compatibility Large Diameter Fiber (LDF)
Industry Telecommunications, Aerospace and Defence, Fiber Optic Lasers, Medical, Optical Equipment Manufacturing (OEM), Research, Mining, Off-shore and Remote
Applications LDF (Large Diameter Fiber), PCF (Photonic Crystal Fiber) Splicing, Interferometric fiber optic sensing, Fiber Optic Tapering, OCD (Optical Combiner Development), Tunable heterodyne source
Standard Package Contains
Warranty Notes AusOptic Genuine Product Guarantee
Authorised distributor, benefit from manufacturer-backed, local warranty coverage, genuine parts, and our experienced local support team
Write Your Own Review
You're reviewing:3SAE Large Bowl Ultrasonic Cleaner
Your Rating
Customer Questions
No Questions
Did you find what you were looking for?
Brochures and Specifications
In This Series
  1. 3SAE Ultrasonic Cleaner, Fitel/Fujikura 16mm F/H Rail, 100w PS, cord & electronic manual
    3SAE Ultrasonic Cleaner, Fitel/Fujikura 16mm F/H Rail, 100w PS, cord & electronic manual
    Request Quote

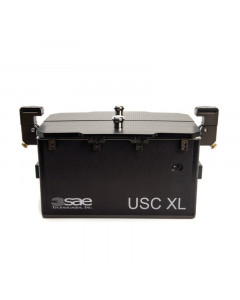

  2. 3SAE Ultrasonic Cleaner XL
