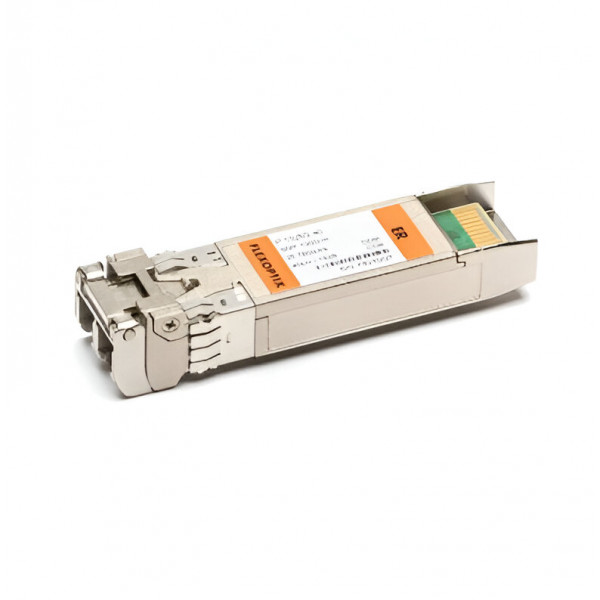

FLEXOPTIX 25G SFP28 ER with dual CDR | 40 km, λ1300 nm, LC-Duplex, Singlemode
SKU #P.1325G.40
- Universal SFP28 Transceiver
- Use FLEXBOX to configure to almost any vendor
- For 25GBASE-ER Ethernet links
- Integrated Clock-Data-Recovery (CDR)
- Reach up to 30km (w/o FEC) or 40km (w/ FEC) over G.652 SMF
- Supported Data Rates: 25.78 Gbit/s
- Up to 40 km via Singlemode OS2
- LC-Duplex Connector
- Need help selecting the right option for your vendor / hardware?
Request compatibility
AU$478.71
AU$526.58
6 In-stock / Dispatched from Germany (7 days)
Part Number
P.1325G.40
| Manufacturer | FLEXOPTIX |
|---|---|
| Product Series | FLEXOPTIX Universal Transceivers |
| Product Type | Transceivers |
| Form Factor | SFP28 |
| Connector | LC-Duplex PC |
| Distance | 40 km |
| Interface | ER |
| Power Budget (dB) | 16 dB |
| Transmit and Dispersion Penalty | 2 dB |
| Extinction Ratio | 2.7 dB |
| Bandwidth Range | 25.78 Gbit/s |
| Laser | EML |
| Receiver Type | PIN |
| Wavelength RX (Range) | 1295 - 1325 nm |
| Wavelength RX (Typical) | 1300 nm |
| Wavelength TX (Range) | 1295 - 1310 nm |
| Wavelength TX (Typical) | 1300 nm |
| Temperature Range | 0°C - 70°C |
| Type of DDM / DOM | Internally calibrated |
| Networking Protocol | 25G Ethernet |
| Type | ER |
| Operating Temp. (Min) | 0°C |
| Operating Temp. (Max) | 70°C |
| Vendor Switch Coding | MSA Standard, Extreme, Nokia (ex. Alcatel-Lucent) |
| CDR | TX and RX |
| Inbuilt FEC | No |
| Receiver Min/Max | -19 dBm / -4 dBm (overload) @25G |
| SGMII | No |
| Transmit Min/Max | -3 dBm / 6 dBm |
| Power Consumption | 1.8 W |
| Modulation | NRZ @25G |
| Industry | Telecommunications, Carriers, Service and Content Providers, Campus Networks, Data Centres, Enterprise Networks |
| Applications | Data Centre Connectivity, GPON (Gigabit Passive Optical Network), LAN Installation, Network Core and Edge, SFP/Transceiver Vendor Programming, RF and microwave photonics, Carriers, Service and Content Providers, Enterprise Networking |
| Warranty | 1 Year |
| Warranty Notes | AusOptic Genuine Product Guarantee Authorised distributor, benefit from manufacturer-backed, local warranty coverage, genuine parts, and our experienced local support team, Engineered to FLEXOPTIX exacting standards You can rely on FLEXOPTIX modules to achieve the real dynamic range, sensitivity, crosstalk performance and genuine quality your system requires |
