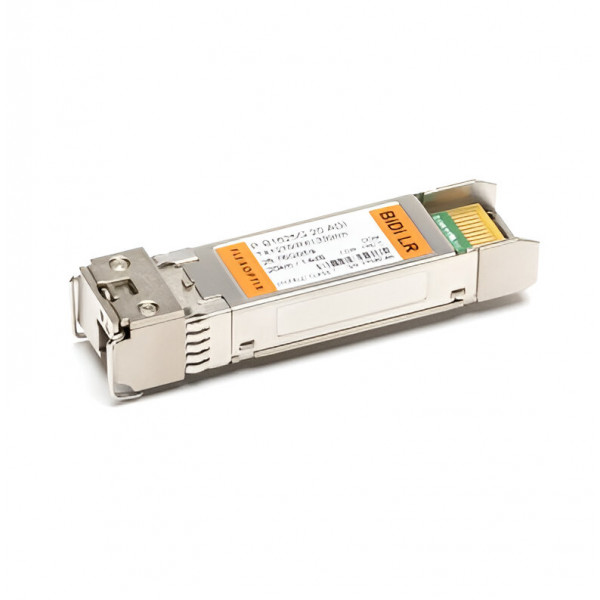

FLEXOPTIX 25G SFP28 BiDi LR Industrial with dual CDR | 20 km, ᵀˣ1270 / ᴿˣ1330 nm, LC-Simplex, Singlemode

Be the first to review this product

SKU #P.B1625G.20.ADI

Universal SFP28 BiDi Transceiver
Use FLEXBOX to configure to almost any vendor
Double your bandwidth by using only one fiber for transmit and receive
For 25GBASE-LR Ethernet links
Integrated Clock-Data-Recovery (CDR)
Supported Data Rates: 25.78 Gbit/s
Up to 20 km via Singlemode OS2
LC-Simplex Connector
Operating Temperature from -40°C to 85°C

Need help selecting the right option for your vendor / hardware?
Request compatibility

AU$218.89 AU$240.78

Confirm stocks / Dispatched from Germany (7 days)

Part Number

P.B1625G.20.ADI

Choose Vendor Compatibility

More Information

Reviews

Product Questions

More Information
Manufacturer	FLEXOPTIX
Product Series	FLEXOPTIX Universal Transceivers
Product Type	Transceivers
Form Factor	SFP28
Connector	LC-Simplex UPC
Distance	20 km
Interface	Singlemode BiDi
Power Budget (dB)	14 dB
Transmit and Dispersion Penalty	3.5 dB
Extinction Ratio	3.5 dB
Bandwidth Range	25.78 Gbit/s
Laser	DFB
Receiver Type	APD
Wavelength RX (Range)	1320 - 1340 nm
Wavelength RX (Typical)	1330 nm
Wavelength TX (Range)	1260 - 1280 nm
Wavelength TX (Typical)	1270 nm
Temperature Range	-40°C - 85°C
Type of DDM / DOM	Internally calibrated
Networking Protocol	10G Ethernet, 25G Ethernet
Type	BiDi LR
Operating Temp. (Min)	-40°C
Operating Temp. (Max)	85°C
Temperature Range.	Extended Range
Vendor Switch Coding	MSA Standard, A10networks, ADTRAN, ADVA, Check Point, Chelsio, Ciena (ex. Nortel), ECI, Edge Core, F5 Networks, Fluke Networks, Fortinet, Keymile, LANCOM, MikroTik, Motorola, Netgear, Oracle, Palo Alto Networks, Radware, Solarflare, Supermicro, TP-LINK, Transition Networks
CDR	TX and RX
Inbuilt FEC	No
Bandwidth Per Lane	25.78 Gbit/s
Receiver Min/Max	-14 dBm / -3 dBm (overload) @25G
SGMII	No
Transmit Min/Max	0 dBm / 5 dBm
Power Consumption	1.5 W
Modulation	NRZ @25G
Industry	Telecommunications, Carriers, Service and Content Providers, Campus Networks, Data Centres, Enterprise Networks
Applications	Data Centre Connectivity, GPON (Gigabit Passive Optical Network), LAN Installation, Network Core and Edge, SFP/Transceiver Vendor Programming, RF and microwave photonics, Carriers, Service and Content Providers, Enterprise Networking
Warranty	1 Year
Warranty Notes	AusOptic Genuine Product Guarantee Authorised distributor, benefit from manufacturer-backed, local warranty coverage, genuine parts, and our experienced local support team, Engineered to FLEXOPTIX exacting standards You can rely on FLEXOPTIX modules to achieve the real dynamic range, sensitivity, crosstalk performance and genuine quality your system requires
