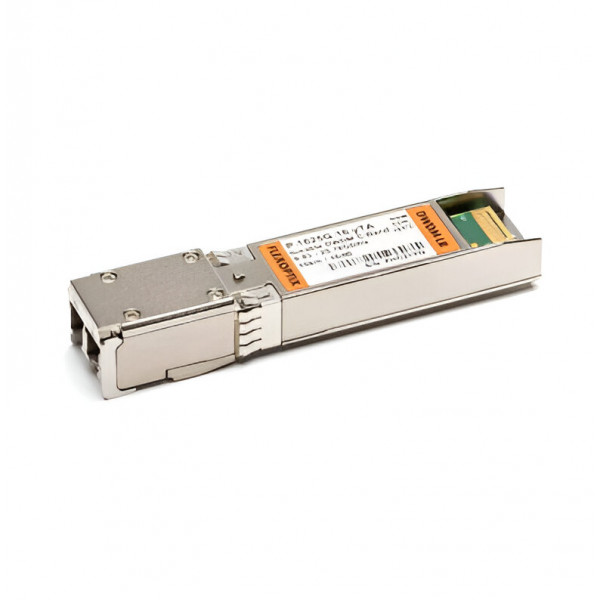

FLEXOPTIX 25G SFP28 Auto-Tunable DWDM LR with dual CDR | 10 km, 50 Channels, 100GHz Grid, C-Band, LC-Duplex, Singlemode
SKU #P.1625G.16.YTA
- Universal Multirate tunable SFP28 Transceiver
- Use FLEXBOX to configure to almost any vendor
- For 25GBASE-LR Ethernet links
- Auto-Tunable feature enabled
- Reduce spare part stock for your DWDM network
- Integrated Clock-Data-Recovery (CDR)
- Supports 10G up to 40km
- Supported Data Rates: 9.83 Gbit/s - 25.78 Gbit/s
- Up to 10 km via Singlemode OS2
- LC-Duplex Connector
- Operating Temperature from -20°C to 85°C
- Need help selecting the right option for your vendor / hardware?
Request compatibility
AU$1,915.63
AU$2,107.19
Reordering - Contact to confirm availability
Part Number
P.1625G.16.YTA
| Manufacturer | FLEXOPTIX |
|---|---|
| Product Series | FLEXOPTIX Universal Transceivers |
| Product Type | Transceivers |
| Form Factor | SFP28 |
| Connector | LC-Duplex PC |
| Distance | 10 km |
| Interface | Singlemode DWDM 100GHz |
| Power Budget (dB) | 16 dB |
| Extinction Ratio | 7 dB |
| Bandwidth Range | 9.83 Gbit/s - 25.78 Gbit/s |
| Laser | ILMZ |
| Receiver Type | APD |
| Wavelength RX (Range) | 1529.5 - 1568.8 nm |
| Wavelength TX (Range) | 1529.55 - 1568.77 nm |
| Wavelength TX (Typical) | tunable DWDM 100GHz |
| Temperature Range | -20°C - 85°C |
| Type of DDM / DOM | Internally calibrated |
| Networking Protocol | LTE 10.137G CPRI, 10G Ethernet, 25G Ethernet |
| Type | LR |
| Operating Temp. (Min) | -20°C |
| Operating Temp. (Max) | 85°C |
| Temperature Range. | Industrial (Temperature Hardened) |
| Vendor Switch Coding | MSA Standard |
| CDR | TX and RX |
| Inbuilt FEC | No |
| Receiver Min/Max | -16 dBm / -2 dBm (overload) @25G |
| SGMII | No |
| Transmit Min/Max | 0 dBm / 4 dBm |
| Power Consumption | 2.5 W |
| Modulation | NRZ @25G |
| Industry | Telecommunications, Carriers, Service and Content Providers, Campus Networks, Data Centres, Enterprise Networks |
| Applications | Data Centre Connectivity, GPON (Gigabit Passive Optical Network), LAN Installation, Network Core and Edge, SFP/Transceiver Vendor Programming, RF and microwave photonics, Carriers, Service and Content Providers, Enterprise Networking |
| Warranty | 1 Year |
| Warranty Notes | AusOptic Genuine Product Guarantee Authorised distributor, benefit from manufacturer-backed, local warranty coverage, genuine parts, and our experienced local support team, Engineered to FLEXOPTIX exacting standards You can rely on FLEXOPTIX modules to achieve the real dynamic range, sensitivity, crosstalk performance and genuine quality your system requires |
Write Your Own Review
Customer Questions
In This Series
-

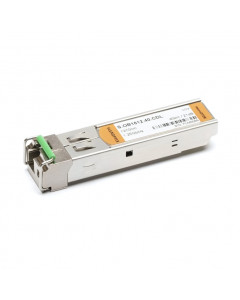

FLEXOPTIX 1G SFP CWDM microOTDR Extended | ~40 km / 21 dB, 1310 nm - 1550 nm, DDM, LC-SimplexAs low as AU$821.72 AU$903.89
-

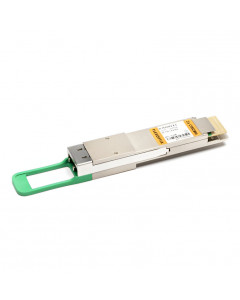

FLEXOPTIX 2x 100G QSFP-DD CWDM4 with dual CDR | 2 km, λ1270-1330 nm, CS-Duplex, SinglemodeAU$2,790.79 AU$3,069.87
-
FLEXOPTIX 1G SFP CWDM ZX+ EXTENDED ~140 km / 36 dB, 1270 nm - 1610 nm, DDM, LC-DuplexAs low as AU$300.62 AU$330.68
-
Related Products
-

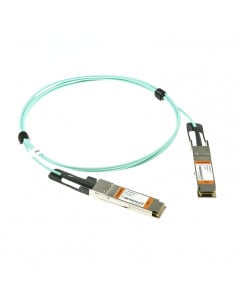

FLEXOPTIX 200G QSFP56 to 2x QSFP56 Breakout AOC with CDR (TX / RX) | Multimode Fiber, 1 - 70 mAs low as AU$1,326.83 AU$1,459.51
-
FLEXOPTIX 10G XFP CWDM ER Industrial 14 dB / ~30 km, 1270-1610 nm, Singlemode, LCAs low as AU$825.14 AU$907.65
-
-

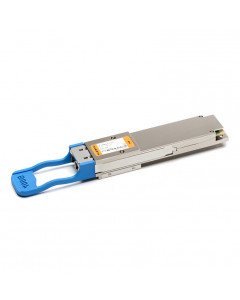

FLEXOPTIX 400G QSFP112 LR4 with dual CDR | 10 km, λ1271-1331 nm, LC-Duplex, SinglemodeAU$2,451.61 AU$2,696.77
