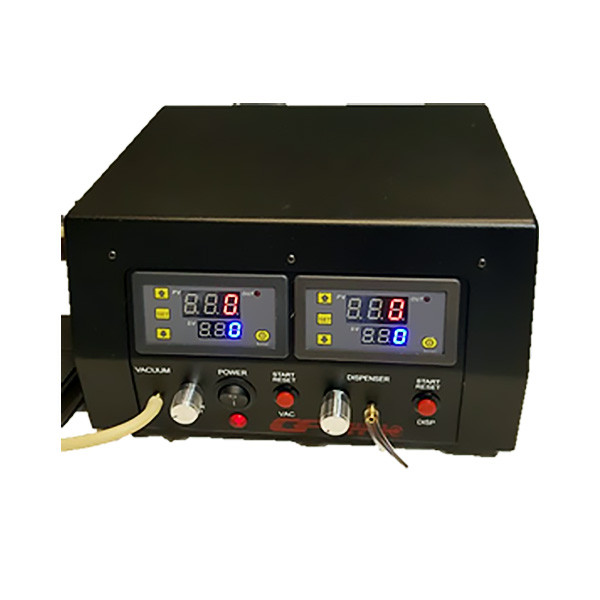

1Cure Evolve-MT Epoxy Fill System

SKU #1Cure-Evolve-MT
Epoxy fill system for MT ferrule applications. Integrated dispenser and vacuum function for hands-free operation. No external air line needed. Timed function ensures consistent epoxy bead size and wetting across all fibers.
Request Quote
Request current lead time
Part Number
1Cure-Evolve-MT

Features

  • Activates Dispenser and Vacuum successively
  • Digital Timed operation for a Repeatable Process
  • Foot pedal or Button operation
  • Hand-free Vacuum Pump Fitting
  • No External Air Line Required – Ultra portable
  • 3" LCD Touch Screen
  • 6 MT Tray Capacity
  • 8 Programs
  • 9 Adjustable Viscosity Profiles
  • Power 100~240 VAC Universal Adapter, 12 VDC 2 Amps

Benefits

  • Integration of epoxy dispensing with vacuum for MT ferrules through a straightforward process
  • Digital timing for consistent and controlled operations
  • Enables hands-free operation with a foot pedal for easy handling
  • Enhanced flexibility with portability for line operations
  • Independent controls for Dispensing Timer and Vacuum Timer
  • Precise adjustment of Pressure and Vacuum settings
  • Automatic start of vacuum after dispensing is complete
  • Dispenser can function independently from the vacuum unit

Applications

  • MPO Cable Assembly Fabrication
  • MT Ferrule Fiber Assemblies
  • Single Fiber Epoxy Dispenser

Introduction

Connected Fibers Introduces the 1Cure Evolve-MT™ Epoxy Fill System for MT Ferrule Applications

Process Evolution begins with a hands-free operation and, for the first time, a ground-breaking integration of dispenser and vacuum function. No external air line is required to dispense epoxy. This timed feature allows for a repeatable and controlled process, ensuring that the epoxy bead size and wetting are even across all fibers. The system can also be used as a dispenser only for single fiber connectors and is fully mobile since no external air line is required.

Consistent epoxy beads help to dial in polishing times and grit size for a more efficient and repeatable polishing process. The vacuum pump draws the epoxy through the ferrule and evenly distributes it around the fibers, improving the long-term reliability of the bonded ferrule. A correctly pre-loaded MT ferrule will also prevent core cracking during polishing.

This latest offering expands Connected Fibers' product line of intelligent curing ovens and accessories, including the flagship model 1CureTM epoxy oven and 1Cure-VO™ programmable oven for advanced fiber optic assembly manufacturing.

More Information
Manufacturer 1Cure
Product Series 1Cure Epoxy Curing Ovens
Product Type Epoxy Curing Ovens
Size / Operation Benchtop
Device Connectivity via USB
Industry Aerospace and Defence, Optical Equipment Manufacturing (OEM)
Applications Cable Assembly Fabrication
Standard Package Contains
Warranty 1 Year
Warranty Notes AusOptic Genuine Product Guarantee
Authorised distributor, benefit from manufacturer-backed, local warranty coverage, genuine parts, and our experienced local support team
