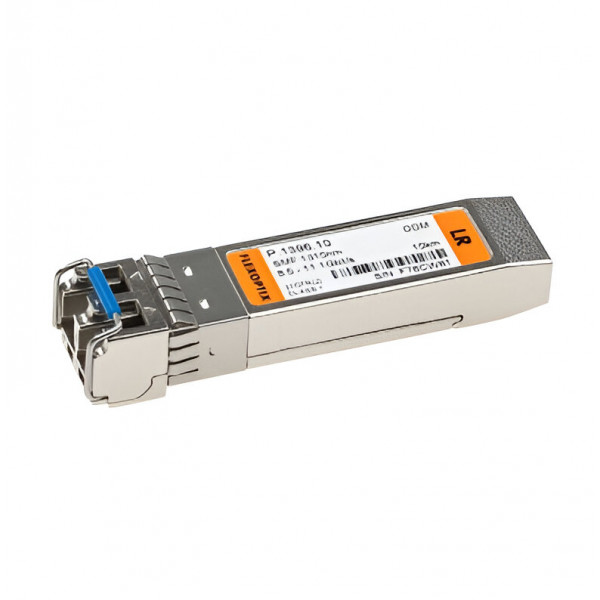

FLEXOPTIX 12G UHD Video SDI SFP+ with dual CDR | 10 km, λ1310 nm, LC-Duplex, Singlemode
SKU #P.1312G.10.RPS
- Universal Video SFP+ Transceiver
- Use FLEXBOX to configure to almost any vendor
- 3G SDI protocol support for broadcasting applications
- Integrated Clock-Data-Recovery (CDR)
- Supported Data Rates: 270 Mbit/s - 11.88 Gbit/s
- Up to 10 km via Singlemode OS2
- LC-Duplex Connector
- Need help selecting the right option for your vendor / hardware?
Request compatibility
AU$633.92
AU$697.31
Reordering - Contact to confirm availability
Part Number
P.1312G.10.RPS
| Manufacturer | FLEXOPTIX |
|---|---|
| Product Series | FLEXOPTIX Universal Transceivers |
| Product Type | Transceivers |
| Form Factor | SFP+ |
| Connector | LC-Duplex PC |
| Distance | 10 km |
| Interface | 12G UHD SDI |
| Power Budget (dB) | 5.8 dB |
| Extinction Ratio | 3.5 dB |
| Bandwidth Range | 270 Mbit/s - 11.88 Gbit/s |
| Laser | DFB |
| Receiver Type | PIN |
| Wavelength RX (Range) | 1260 - 1620 nm |
| Wavelength RX (Typical) | 1310 nm |
| Wavelength TX (Range) | 1260 - 1355 nm |
| Wavelength TX (Typical) | 1310 nm |
| Temperature Range | 0°C - 70°C |
| Type of DDM / DOM | Internally calibrated |
| Networking Protocol | 12G UHD SDI |
| Type | 12G UHD SDI |
| Operating Temp. (Min) | 0°C |
| Operating Temp. (Max) | 70°C |
| Vendor Switch Coding | MSA Standard |
| CDR | TX and RX |
| Inbuilt FEC | No |
| Receiver Min/Max | -14 dBm / 0.5 dBm (overload) @12G |
| SGMII | No |
| Transmit Min/Max | -8.2 dBm / 2 dBm |
| Power Consumption | 1.5 W |
| Modulation | NRZ @12G |
| Industry | Telecommunications, Carriers, Service and Content Providers, Campus Networks, Data Centres, Enterprise Networks |
| Applications | Data Centre Connectivity, GPON (Gigabit Passive Optical Network), LAN Installation, Network Core and Edge, SFP/Transceiver Vendor Programming, RF and microwave photonics, Carriers, Service and Content Providers, Enterprise Networking |
| Warranty | 1 Year |
| Warranty Notes | AusOptic Genuine Product Guarantee Authorised distributor, benefit from manufacturer-backed, local warranty coverage, genuine parts, and our experienced local support team, Engineered to FLEXOPTIX exacting standards You can rely on FLEXOPTIX modules to achieve the real dynamic range, sensitivity, crosstalk performance and genuine quality your system requires |
