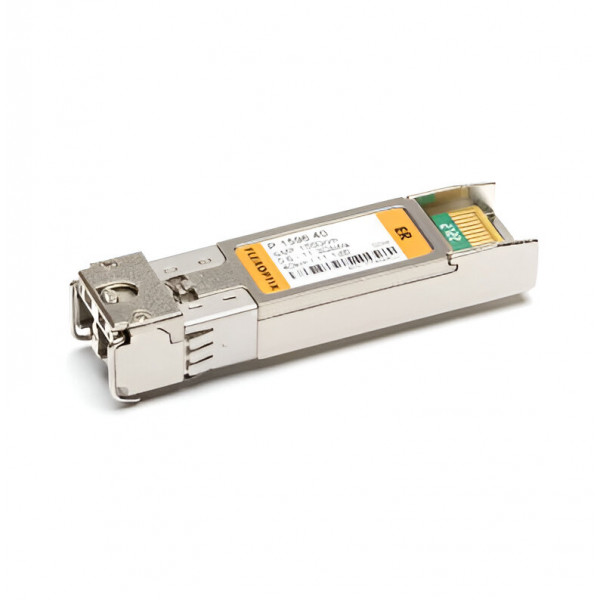

FLEXOPTIX 10G SFP+ ER | 40 km, λ1550 nm, LC-Duplex, Singlemode

Be the first to review this product

SKU #P.1596.40

Universal SFP+ Transceiver
Use FLEXBOX to configure to almost any vendor
For 10GBASE-ER Ethernet links
Supported Data Rates: 600 Mbit/s - 11.3 Gbit/s
Up to 40 km via Singlemode OS2
LC-Duplex Connector

Need help selecting the right option for your vendor / hardware?
Request compatibility

AU$375.22 AU$412.74

Reordering - Contact to confirm availability

Part Number

P.1596.40

Choose Vendor Compatibility

More Information

Reviews

Product Questions

More Information
Manufacturer	FLEXOPTIX
Product Series	FLEXOPTIX Universal Transceivers
Product Type	Transceivers
Form Factor	SFP+
Connector	LC-Duplex PC
Distance	40 km
Interface	Singlemode
Power Budget (dB)	11.1 dB
Transmit and Dispersion Penalty	2 dB
Extinction Ratio	3.5 dB
Bandwidth Range	600 Mbit/s - 11.3 Gbit/s
Laser	EML
Receiver Type	PIN
Wavelength RX (Range)	1530 - 1565 nm
Wavelength RX (Typical)	1550 nm
Wavelength TX (Range)	1530 - 1565 nm
Wavelength TX (Typical)	1550 nm
Temperature Range	0°C - 70°C
Type of DDM / DOM	Internally calibrated
Networking Protocol	10G Ethernet, 1G Ethernet, 10G Fibre Channel, 8G Fibre Channel, LTE 0.614G CPRI, LTE 0.768G OBSAI, LTE 1.22G CPRI, LTE 1.536G OBSAI, LTE 2.458G CPRI, LTE 3.072G OBSAI, LTE 4.915G CPRI, LTE 6.144G CPRI, LTE 6.144G OBSAI, LTE 7.373 CPRI, LTE 9.830 CPRI, 10G FC
Type	ER
Operating Temp. (Min)	0°C
Operating Temp. (Max)	70°C
Vendor Switch Coding	MSA Standard, A10networks, ADTRAN, ADVA, Check Point, Chelsio, Ciena (ex. Nortel), ECI, Edge Core, F5 Networks, Fluke Networks, Fortinet, Keymile, LANCOM, MikroTik, Motorola, Netgear, Oracle, Palo Alto Networks, Radware, Solarflare, Supermicro, TP-LINK, Transition Networks
CDR	none
Inbuilt FEC	No
Receiver Min/Max	-15.8 dBm / -1 dBm (overload) @10G
SGMII	No
Transmit Min/Max	-4.7 dBm / 4 dBm
Power Consumption	1.5 W
Modulation	NRZ @10G
Industry	Telecommunications, Carriers, Service and Content Providers, Campus Networks, Data Centres, Enterprise Networks
Applications	Data Centre Connectivity, GPON (Gigabit Passive Optical Network), LAN Installation, Network Core and Edge, SFP/Transceiver Vendor Programming, RF and microwave photonics, Carriers, Service and Content Providers, Enterprise Networking
Warranty	1 Year
Warranty Notes	AusOptic Genuine Product Guarantee Authorised distributor, benefit from manufacturer-backed, local warranty coverage, genuine parts, and our experienced local support team, Engineered to FLEXOPTIX exacting standards You can rely on FLEXOPTIX modules to achieve the real dynamic range, sensitivity, crosstalk performance and genuine quality your system requires
