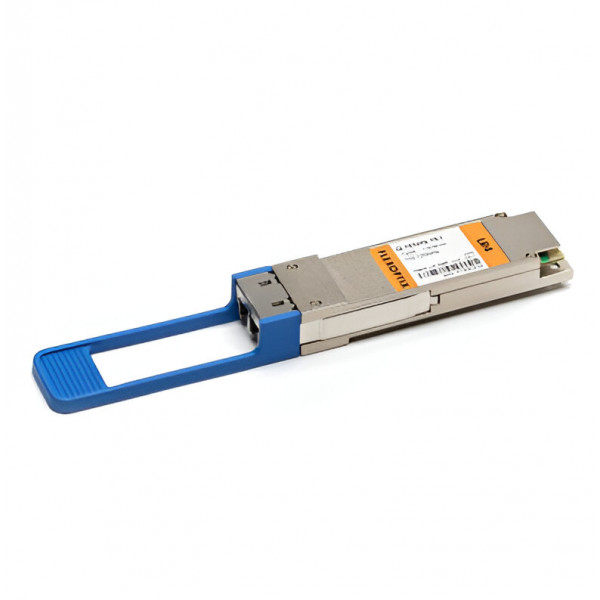

FLEXOPTIX 100G QSFP28 LR4 Industrial with dual CDR | 10 km, λ1296-1309 nm, LC-Duplex, Singlemode
SKU #Q.161HG.10.I
- Universal QSFP28 Transceiver
- Use FLEXBOX to configure to almost any vendor
- For 100GBASE-LR4 Ethernet links
- Integrated Clock-Data-Recovery (CDR)
- Supported Data Rates: 103.12 Gbit/s
- Up to 10 km via Singlemode OS2
- LC-Duplex Connector
- Operating Temperature from -40°C to 85°C
- Need help selecting the right option for your vendor / hardware?
Request compatibility
AU$1,275.93
AU$1,403.52
10 In-stock / Dispatched from Germany (7 days)
Part Number
Q.161HG.10.I
| Manufacturer | FLEXOPTIX |
|---|---|
| Product Series | FLEXOPTIX Universal Transceivers |
| Product Type | Transceivers |
| Form Factor | QSFP28 |
| Connector | LC-Duplex PC |
| Distance | 10 km |
| Interface | Singlemode |
| Wavelength TX | 1550 nm |
| Wavelength RX | 1550 nm |
| Power Budget (dB) | 4.3 dB |
| Extinction Ratio | 4 dB |
| Bandwidth from | 103.12 Gbit/s |
| Bandwidth to | 103.12 Gbit/s |
| Bandwidth Range | 103.12 Gbit/s |
| Laser | DFB |
| Receiver Type | PIN |
| Wavelength TX (Range) | 1295.6 nm, 1300 nm, 1304.6 nm, 1309.1 nm |
| Wavelength TX (Typical) | 1295.6 nm, 1300.1 nm, 1304.6 nm, 1309.1 nm |
| Temperature Range | 0°C - 70°C |
| Type of DDM / DOM | Internally calibrated |
| Networking Protocol | 100G Ethernet |
| Type | LR4 |
| Operating Temp. (Min) | -40°C |
| Operating Temp. (Max) | 85°C |
| Temperature Range. | Extended Range |
| Vendor Switch Coding | MSA Standard, Cisco Systems, Extreme, Juniper |
| CDR | TX and RX |
| Inbuilt FEC | No |
| Bandwidth Per Lane | 25.78 Gbit/s |
| Receiver Min/Max | -8.6 dBm / 4.5 dBm (overload) @100G |
| SGMII | No |
| Transmit Min/Max | -4.3 dBm / 4.5 dBm |
| Power Consumption | 4.8 W |
| Lane Count | 4x (Tx/Rx) |
| Modulation | NRZ @100G |
| Industry | Telecommunications, Carriers, Service and Content Providers, Campus Networks, Data Centres, Enterprise Networks |
| Applications | Data Centre Connectivity, GPON (Gigabit Passive Optical Network), LAN Installation, Network Core and Edge, SFP/Transceiver Vendor Programming, RF and microwave photonics, Carriers, Service and Content Providers, Enterprise Networking |
| Warranty | 1 Year |
| Warranty Notes | AusOptic Genuine Product Guarantee Authorised distributor, benefit from manufacturer-backed, local warranty coverage, genuine parts, and our experienced local support team, Engineered to FLEXOPTIX exacting standards You can rely on FLEXOPTIX modules to achieve the real dynamic range, sensitivity, crosstalk performance and genuine quality your system requires |
Write Your Own Review
Customer Questions
In This Series
-
FLEXOPTIX 100G QSFP28 ER4 Extended with dual CDR | 40 km, λ1296-1309 nm, LC-Duplex, SinglemodeAU$3,241.26 AU$3,565.39
-
-
FLEXOPTIX 10G SFP+ CWDM LR Extended ~10 km / 10 dB, 1270 nm - 1610 nm, LC-DuplexAs low as AU$253.42 AU$278.76
-

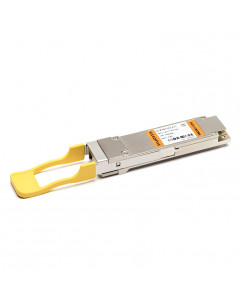

FLEXOPTIX 100G QSFP28 BIDI CWDM4 with Dual CDR 2 km, LC-Simplex APC, SinglemodeAU$1,446.06 AU$1,590.67
