OST 1000 BASE-T 1000BASESX Fibre US iConverter Ethernet ST MM 850 550M
SKU #8500N-0-A

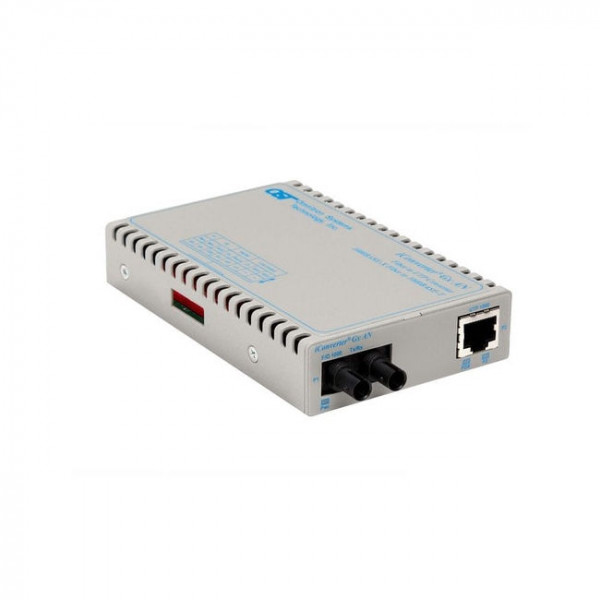

Omnitron iConverter 1000Mbps Gigabit Ethernet Fibre Media Converter RJ45 ST Multimode 550m - 1 x 1000BASE-T - 1 x 1000BASE-SX - Standalone - US AC Powered - Lifetime Warranty
Typically Ships in 15 to 20 Business Days
Part Number
8500N-0-A
iConverter 1000Mbps Gigabit Ethernet Fibre Media Converter RJ45 ST Multimode 550m - 1 x 1000BASE-T; 1 x 1000BASE-SX; Standalone; US AC Powered; Lifetime Warranty
The iConverter Gx AN Media Converter is a manageable media converter that provides 1000BASE-T UTP to 1000BASE-X fibre conversion between Gigabit networking devices.The UTP port supports auto-negotiation or forced negotiation of duplex modes and pause capability while the fibre port supports both manual or auto-negotiation.
- SFP models support Small Form Pluggable (SFP) transceivers with Optical Statistics for standard or CWDM applications
- Fixed-fibre connectors available for multimode and single-mode dual fibre and single-mode single-fibre
- UTP auto or forced negotitaion of duplex modes and pause capabilities
- Fibre port supports auto or manual negotiation
- User-selectable link fault detection modes facilitate quick fault detection, isolation and reporting
- Management of the plug-in module is available with the addition of a management module to the chassis
- SNMP management via NetOutlook" provides module information, remote parameter configuration and trap notification
- Plug-in modules are hot-swappable in 19-Module, 5-Module, 2-Module or 1-Module chassis
- LED displays for immediate visual status of each port
- Lifetime Warranty and free 24/7 Technical Support
Features
- For efficient encoding/decoding of data into light pulses and then sending them to the other end as electrical signals for a dependable photoelectric conversion
- Meet the multiple network connectivity needs of today's network environment with this 2 transceiver/media converter
- With 1000Base-T technology get up to 1000Mbps data transfer rate over twisted pair cable
- The Rack-mountable provides convenient installation
- With Twisted Pair cable, get the desired data transfer rate up to a required distance
Power Description
| Input Voltage | 120 V AC |
| 120 V AC |
Network & Communication
| Network Technology | 1000Base-T |
| 1000Base-SX | |
| Ethernet Technology | Gigabit Ethernet |
Media & Performance
| Maximum Distance Supported | 1804.46 ft |
| Media Type Supported | Twisted Pair |
| Optical Fibre | |
| Fibre Mode Supported | Multi-mode |
| Fibre Optic Wavelength | 850 nm |
Miscellaneous
| Additional Information |
Input Voltage: |
| Package Contents |
|
| Certifications & Standards |
|
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Restriction of Hazardous Substances (RoHS) |
Physical Characteristics
| Weight (Approximate) | 1 lb |
| Form Factor | External |
| Desktop | |
| Rack-mountable | |
| Height | 1" |
| Width | 3.1" |
| Depth | 4.8" |
General Information
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | 8500N-0-A |
| Manufacturer Website Address | http://www.omnitron-systems.com |
| Manufacturer | Omnitron Systems |
| Product Model | 8500N-0-x |
| Product Name | iConverter Gx AN ST Multimode 550m Standalone US AC Powered |
| Package Type | Retail |
| Product Line | iConverter |
| Product Series | Gx AN |
| Brand Name | Omnitron Systems |
Interfaces/Ports
| USB | No |
| DVI | No |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Parallel Port | No |
| Management Port | No |
| Digital Audio | No |
| Number of ST Ports | 1 |
| Digital Audio/Video | No |
| Total Number of Ports | 2 |
| ST Port Type | Duplex |
| Manufacturer | Omnitron Systems |
|---|---|
| Barcode | 0800975046054 |
| Product Series | Omnitron Systems iConverter Multi-Service Platform |
| Product Type | Media Converters |
| Industry | Service and Content Providers, Carriers, Telecommunications, Carriers, Service and Content Providers, Campus Networks, Data Centres, Enterprise Networks, Financial Institutions, Government and Defence Communications, Aerospace and Defence, Broadcast, Mining, Off-shore and Remote, Security, Transportation, Utilities |
| Applications | HetNet (Heterogeneous Network), Indoor/Outdoor DAS (Distributed Antenna Systems), Network Infrastructure, Network Core and Edge |
| Warranty Notes | Free access to 24/7/365 Omnitron Technical Support |
