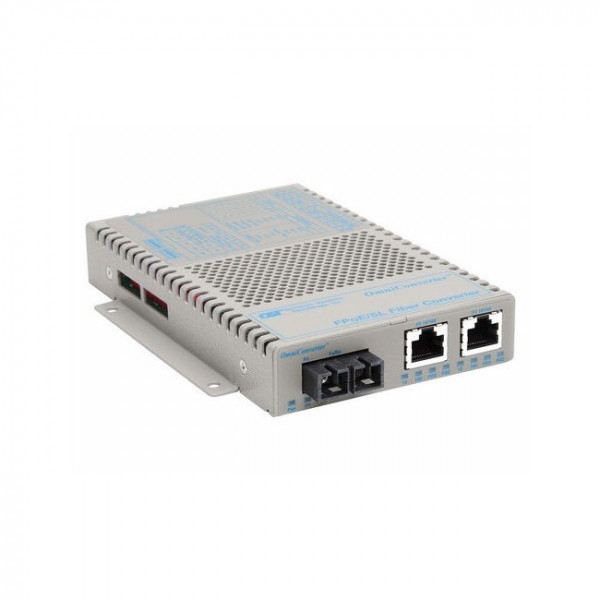

OST 10/100T 2X / 100FX US Pwr Cord OmniConverter FPoE/SL SC MM1310 5KM
SKU #9342-0-21
Omnitron OmniConverter SL 10/100 PoE Ethernet Fibre Media Converter Switch RJ45 SC Multimode 5km - 2 x 10/100BASE-TX - 1 x 100BASE-FX - US AC Powered - Lifetime Warranty
Typically Ships in 15 to 20 Business Days
Part Number
9342-0-21
OmniConverter SL 10/100 PoE Ethernet Fibre Media Converter Switch RJ45 SC Multimode 5km - 2 x 10/100BASE-TX; 1 x 100BASE-FX; US AC Powered; Lifetime Warranty
The OmniConverter FPoE/SL is a multi-port media converter that converts 10/100BASE-T UTP to 100BASE-FX fibre and support Power-over-Ethernet (PoE). Classified as Power Sourcing Equipment (PSE), OmniConverter FPoE/SL can provide power to one or two Powered Devices (PDs) using standard UTP cables that carry the Ethernet data. The OmniConverter functions as a PoE mini-switch, and supports a variety of port configurations, including single or dual UTP and SFP ports.The OmniConverter media converters can power PDs such as VoIP phones, wireless access points, network cameras, building access and automation equipment. They are especially useful at powering PDs in hard-to-reach locations with limited access to AC power outlets (ceilings, closets, etc.). The cost of bringing electrical power to each device is eliminated by powering the equipment through the UTP cable.
- Supports IEEE 802.3af PoE on one or two RJ-45 copper ports
- Supports 100BASE-FX fixed-fibre and 100BASE-FX SFP transceivers
- Redundant protected fibre link option (using dual SFP transceivers)
- Configurable PoE power reset
- Available in AC and DC models
- Integrated wall mount brackets
- Commercial (0 to 50"C), wide (-40 to 60"C) and extended (-40 to 75"C) operating temperature ranges
- Lifetime Warranty and free 24/7 Technical Support
Features
- For efficient encoding/decoding of data into light pulses and then sending them to the other end as electrical signals for a dependable photoelectric conversion
- Attach multiple devices together or expand the number of devices connected to your existing network by using 3 transceiver/media converter
- With 10/100Base-TX technology get up to 100Mbps data transfer rate over twisted pair cable
- The Rack-mountable provides convenient installation
- Supports optical fibre cable for durable performance, minimal signal loss, and fast data transfers to greater distances
Network & Communication
| Network Technology | 100Base-FX |
| 10/100Base-TX | |
| Ethernet Technology | Fast Ethernet |
| Ethernet |
Power Description
| Input Voltage | 120 V AC |
| 120 V AC | |
| 240 V AC | |
| 240 V AC |
Media & Performance
| Maximum Distance Supported | 3.11 Mile |
| Media Type Supported | Optical Fibre |
| Twisted Pair | |
| Fibre Mode Supported | Multi-mode |
| Fibre Optic Wavelength | 1310 nm |
Miscellaneous
| Additional Information |
Input Voltage: |
| Package Contents |
|
| Certifications & Standards |
|
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Restriction of Hazardous Substances (RoHS) |
Physical Characteristics
| Weight (Approximate) | 1 lb |
| Form Factor | External |
| Desktop | |
| Wall Mountable | |
| Rack-mountable | |
| Height | 1" |
| Width | 4.5" |
| Depth | 6" |
General Information
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | 9342-0-21 |
| Manufacturer Website Address | http://www.omnitron-systems.com |
| Manufacturer | Omnitron Systems |
| Product Model | 9342-0-x |
| Product Name | OmniConverter FPoE/SL 2x PoE SC Multimode 5km US AC Powered |
| Package Type | Retail |
| Product Line | OmniConverter |
| Product Series | FPoE/SL |
| Brand Name | Omnitron Systems |
Interfaces/Ports
| USB | No |
| DVI | No |
| Network (RJ-45) | Yes |
| Parallel Port | No |
| Management Port | No |
| Digital Audio | No |
| Number of PoE (RJ-45) Ports | 2 |
| Number of SC Ports | 1 |
| Digital Audio/Video | No |
| Total Number of Ports | 3 |
| SC Port Type | Duplex |
| Manufacturer | Omnitron Systems |
|---|---|
| Barcode | 0800975046054 |
| Product Series | Omnitron Systems OmniConverter PoE Media Converters |
| Product Type | Media Converters |
| Industry | Service and Content Providers, Carriers, Telecommunications, Carriers, Service and Content Providers, Campus Networks, Data Centres, Enterprise Networks, Financial Institutions, Government and Defence Communications, Aerospace and Defence, Broadcast, Mining, Off-shore and Remote, Security, Transportation, Utilities |
| Applications | HetNet (Heterogeneous Network), Indoor/Outdoor DAS (Distributed Antenna Systems), Network Infrastructure, Network Core and Edge |
| Warranty Notes | Free access to 24/7/365 Omnitron Technical Support |
