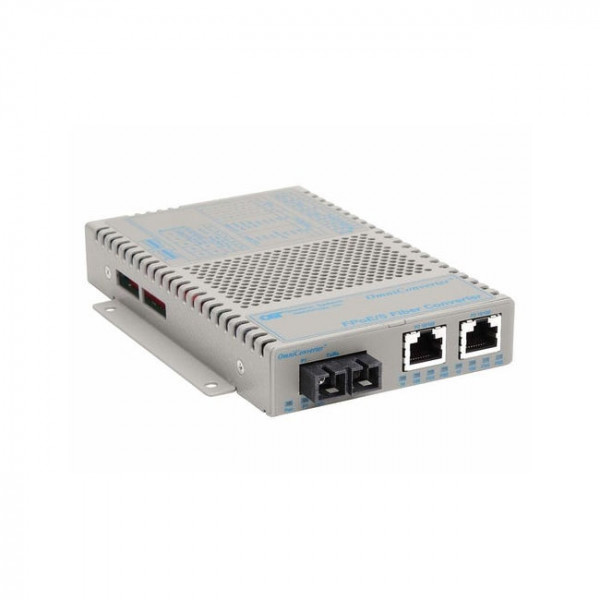

OST 10/100 2X / 100FX US Wide Temp OmniConverter FPoE/S SC MM 1310 5KM
SKU #9302-0-21W
Omnitron OmniConverter 10/100 PoE Ethernet Fibre Media Converter Switch RJ45 SC Multimode 5km Wide Temp - 2 x 10/100BASE-TX - 1 x 100BASE-FX - US AC Powered - Lifetime Warranty
Typically Ships in 15 to 20 Business Days
Part Number
9302-0-21W
OmniConverter 10/100 PoE Ethernet Fibre Media Converter Switch RJ45 SC Multimode 5km Wide Temp - 2 x 10/100BASE-TX; 1 x 100BASE-FX; US AC Powered; Lifetime Warranty
The OmniConverter FPoE/S models are multi-port media converters that convert 10/100BASE-T UTP to 100BASE-FX fibre and support Power-over-Ethernet (PoE and PoE+). Classified as Power Sourcing Equipment (PSE), they can provide power to one or two Powered Devices (PDs) using standard UTP cables that carry the Ethernet data. The OmniConverter functions as a PoE mini-switch, and supports a variety of port configurations, including single or dual UTP and SFP ports.The OmniConverter media converters can power PDs such as VoIP phones, wireless access points, network cameras, building access and automation equipment. They are especially useful at powering PDs in hard-to-reach locations with limited access to AC power outlets (ceilings, closets, etc.). The cost of bringing electrical power to each device is eliminated by powering the equipment through the UTP cable.
Features
- For efficient encoding/decoding of data into light pulses and then sending them to the other end as electrical signals for a dependable photoelectric conversion
- Expand your network capacity and fulfill requirement with this 3 transceiver/media converter
- With 10/100Base-TX technology get up to 100Mbps data transfer rate over optical fibre cable
- The Rack-mountable provides convenient installation
- Supports twisted pair cables for durability and improved signal transfer while ensuring smooth and seamless data transfer
Network & Communication
| Network Technology | 10/100Base-TX |
| 100Base-FX | |
| Ethernet Technology | Ethernet |
| Fast Ethernet |
Power Description
| Input Voltage | 240 V AC |
| 120 V AC | |
| 240 V AC | |
| 120 V AC |
Media & Performance
| Maximum Distance Supported | 3.11 Mile |
| Media Type Supported | Optical Fibre |
| Twisted Pair | |
| Fibre Mode Supported | Multi-mode |
| Fibre Optic Wavelength | 1310 nm |
Miscellaneous
| Additional Information |
Input Voltage: Operating Temperature Range: |
| Package Contents |
|
| Certifications & Standards |
|
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Restriction of Hazardous Substances (RoHS) |
Physical Characteristics
| Weight (Approximate) | 1 lb |
| Form Factor | External |
| Wall Mountable | |
| Rack-mountable | |
| Desktop | |
| Height | 1" |
| Width | 4.5" |
| Depth | 6" |
General Information
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | 9302-0-21W |
| Manufacturer Website Address | http://www.omnitron-systems.com |
| Manufacturer | Omnitron Systems |
| Product Model | 9302-0-x |
| Product Name | OmniConverter FPoE/S 2x PoE SC Multimode 5km US AC Powered Wide Temp |
| Package Type | Retail |
| Product Line | OmniConverter |
| Product Series | FPoE/S |
| Brand Name | Omnitron Systems |
Interfaces/Ports
| USB | No |
| DVI | No |
| Network (RJ-45) | Yes |
| Parallel Port | No |
| Management Port | No |
| Digital Audio | No |
| Number of PoE (RJ-45) Ports | 2 |
| Number of SC Ports | 1 |
| Digital Audio/Video | No |
| Total Number of Ports | 3 |
| SC Port Type | Duplex |
| Manufacturer | Omnitron Systems |
|---|---|
| Barcode | 0800975046054 |
| Product Series | Omnitron Systems OmniConverter PoE Media Converters |
| Product Type | Media Converters |
| Industry | Service and Content Providers, Carriers, Telecommunications, Carriers, Service and Content Providers, Campus Networks, Data Centres, Enterprise Networks, Financial Institutions, Government and Defence Communications, Aerospace and Defence, Broadcast, Mining, Off-shore and Remote, Security, Transportation, Utilities |
| Applications | HetNet (Heterogeneous Network), Indoor/Outdoor DAS (Distributed Antenna Systems), Network Infrastructure, Network Core and Edge |
| Standard Package Contains | |
| Warranty Notes | Free access to 24/7/365 Omnitron Technical Support |
