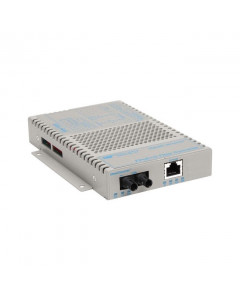

OST 10/100 / 100FX US Pwr Wide Temp OmniConverter FPoE/SL SC MM1310 5KM
SKU #9342-0-11W
Omnitron Multi-port 10/100 Media Converter with Power over Ethernet (PoE/PoE+) - Network (RJ-45) - 1x PoE (RJ-45) Ports - 1 x SC Ports - 10/100Base-TX, 100Base-FX - 3.11 Mile - Rack-mountable, Rail-mountable, Wall Mountable
Typically Ships in 15 to 20 Business Days
Part Number
9342-0-11W
Omnitron Systems Multi-port 10/100 Media Converter with Power over Ethernet (PoE/PoE+) - Network (RJ-45) - 1x PoE (RJ-45) Ports - 1 x SC Ports - 10/100Base-TX, 100Base-FX - 3.11 Mile - Rack-mountable, Rail-mountable, Wall Mountable

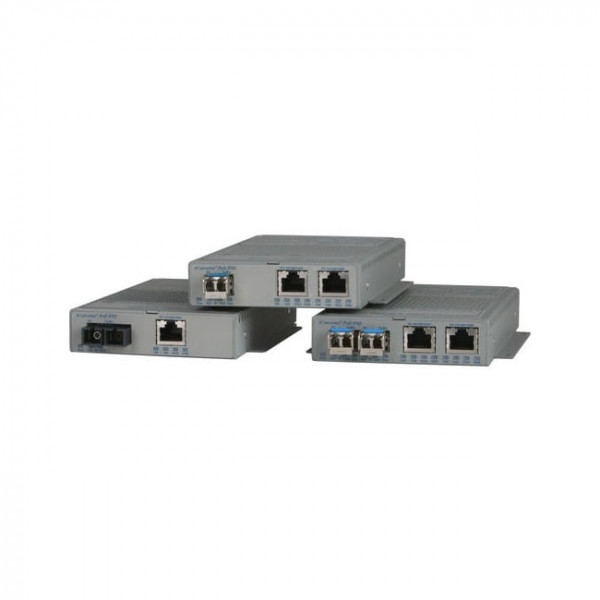

The OmniConverter FPoE/SL, FPoE/S and FPoE+/S are multi-port media converters that convert 10/100BASE-T copper to 100BASE-FX fibre and support Power-over-Ethernet (PoE and PoE+). Classified as Power Sourcing Equipment (PSE), they can provide power to one or two Powered Devices (PDs) using standard UTP cables that carry the Ethernet data. The OmniConverter functions as a PoE mini-switch, and supports a variety of port configurations, including single or dual RJ-45 and SFP ports.
OmniConverter PoE media converters provide network distance extension with fibre cabling, and function as PoE injectors that enable powering devices such as IP-phones, surveillance cameras and wireless access points with Power over Ethernet (PoE).
Features
- For efficient encoding/decoding of data into light pulses and then sending them to the other end as electrical signals for a dependable photoelectric conversion
- Expand your network capacity and fulfill requirement with this 2 transceiver/media converter
- With 10/100Base-TX technology get up to 100Mbps data transfer rate over twisted pair cable
- The Rack-mountable provides convenient installation
- With Optical Fibre cable, get the desired data transfer rate up to a required distance
Power Description
| Input Voltage | 48 V DC |
| 48 V DC |
Miscellaneous
| Package Contents |
|
| Certifications & Standards |
|
| Country of Origin | United States |
| Environmentally Friendly | Yes |
Network & Communication
| Network Technology | 100Base-FX |
| 10/100Base-TX | |
| Ethernet Technology | Ethernet |
| Fast Ethernet |
Media & Performance
| Maximum Distance Supported | 3.11 Mile |
| Media Type Supported | Optical Fibre |
| Twisted Pair | |
| Fibre Mode Supported | Multi-mode |
| Fibre Optic Wavelength | 1310 nm |
Physical Characteristics
| Weight (Approximate) | 1.10 lb |
| Form Factor | Wall Mountable |
| Rack-mountable | |
| Rail-mountable | |
| Height | 1" |
| Width | 4.5" |
| Depth | 6" |
General Information
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | 9342-0-11W |
| Manufacturer Website Address | http://www.omnitron-systems.com |
| Manufacturer | Omnitron Systems |
| Product Model | 9342-0-x |
| Product Name | Multi-port 10/100 Media Converter with Power over Ethernet (PoE/PoE+) |
| Product Line | OmniConverter |
| Product Series | FPoE/SL |
| Brand Name | Omnitron Systems |
Interfaces/Ports
| USB | No |
| DVI | No |
| Network (RJ-45) | Yes |
| Parallel Port | No |
| Management Port | No |
| Digital Audio | No |
| Number of PoE (RJ-45) Ports | 1 |
| Number of SC Ports | 1 |
| Digital Audio/Video | No |
| Total Number of Ports | 2 |
| Manufacturer | Omnitron Systems |
|---|---|
| Barcode | 0800975046054 |
| Product Series | Omnitron Systems OmniConverter PoE Media Converters |
| Product Type | Media Converters |
| Industry | Service and Content Providers, Carriers, Telecommunications, Carriers, Service and Content Providers, Campus Networks, Data Centres, Enterprise Networks, Financial Institutions, Government and Defence Communications, Aerospace and Defence, Broadcast, Mining, Off-shore and Remote, Security, Transportation, Utilities |
| Applications | HetNet (Heterogeneous Network), Indoor/Outdoor DAS (Distributed Antenna Systems), Network Infrastructure, Network Core and Edge |
| Warranty Notes | Free access to 24/7/365 Omnitron Technical Support |
