OST 10/100/1000 BASE-T 4Port Switch iConverter 4GT Ethernet VLAN Wide
SKU #8482-4-DW
Omnitron iConverter 4GT Managed Ethernet Switch - 4 Ports - Manageable - Gigabit Ethernet - 10/100/1000Base-T - 2 Layer Supported - Twisted Pair - Wall Mountable, Desktop - Lifetime Limited Warranty
Typically Ships in 15 to 20 Business Days
Part Number
8482-4-DW
Omnitron Systems iConverter 4GT Managed Ethernet Switch - 4 Ports - Manageable - Gigabit Ethernet - 10/100/1000Base-T - 2 Layer Supported - Twisted Pair - Wall Mountable, Desktop - Lifetime Limited Warranty

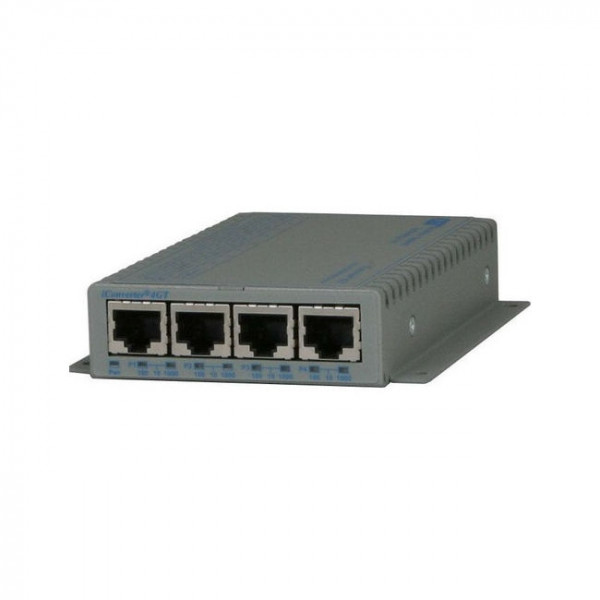

The iConverter 4GT is a four-port 10/100/1000 Ethernet switch. It is available as a compact unmanaged standalone unit or a managed chassis plug-in module. The plug-in modules offers networking features including rate-limiting, traffic classification and prioritization, and VLAN capability.
The four RJ-45 ports support 10/100/1000Mbps, Half/Full-Duplex and auto-negotiation. These features are configurable using DIP switches or through software management. The 4GT supports RJ-45 auto-crossover (MDI/MDI-X) on all four ports, eliminating the need for a crossover cable and facilitating connectivity to different types of Ethernet equipment.
Features
- Built-in power supply to ensure all components are being supplied with accurate voltage
- Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
- The desktop installation makes it ideal for deployments outside the wiring closet
- Management capability provides control over setup and configuration of your network
- Gigabit Ethernet port for ultra-fast network speeds
- Twisted Pair media support ensures maximum convenience and great usability
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 4 ports
- Effectively increases available bandwidth on your network
Network & Communication
| Layer Supported | 2 |
Reliability
| MTBF | 250000 Hour |
Management & Protocols
| Management |
|
| Manageable | Yes |
Media & Performance
| Network Technology | 10/100/1000Base-T |
| Ethernet Technology | Gigabit Ethernet |
| Media Type Supported | Twisted Pair |
Power Description
| Power Source | Power Supply |
| PoE (RJ-45) Port | No |
| Redundant Power Supply Supported | Yes |
Interfaces/Ports
| Token Ring Port | No |
| LRE Port | No |
| USB | No |
| Number of Network (RJ-45) Ports | 4 |
| Modular | No |
| Management Port | Yes |
| Uplink Port | No |
| Stack Port | No |
| Bypass | No |
| Total Number of Network Ports | 4 |
Miscellaneous
| Package Contents |
|
| Certifications & Standards |
IEEE Standards: Compliances: |
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Waste Electrical and Electronic Equipment Directive (WEEE) |
Physical Characteristics
| Weight (Approximate) | 1.50 lb |
| Form Factor | Wall Mountable |
| Desktop | |
| Height | 1" |
| Width | 3.8" |
| Depth | 4.8" |
General Information
| Product Type | Ethernet Switch |
| Manufacturer Part Number | 8482-4-DW |
| Manufacturer Website Address | http://www.omnitron-systems.com |
| Manufacturer | Omnitron Systems |
| Product Name | iConverter 4GT Managed Ethernet Switch |
| Product Line | iConverter |
| Brand Name | Omnitron Systems |
| Manufacturer | Omnitron Systems |
|---|---|
| Barcode | 0800975027992 |
| Product Series | Omnitron Systems iConverter Multi-Service Platform |
| Product Type | Ethernet Switches |
| Warranty Notes | Free access to 24/7/365 Omnitron Technical Support |
