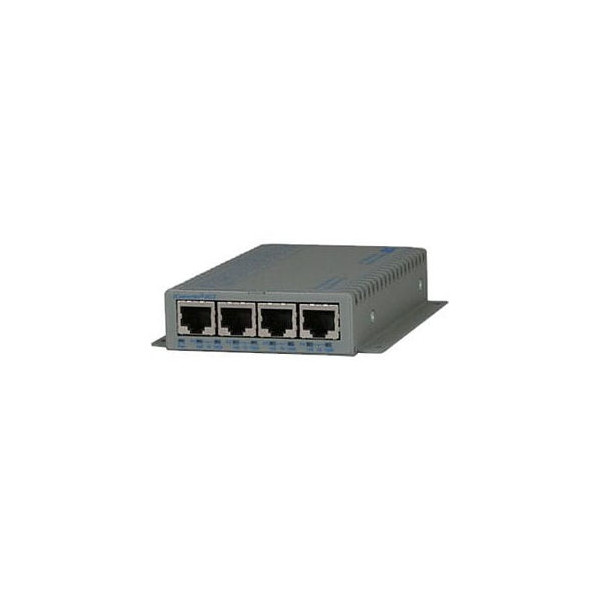

OST 10/100/1000 BASE-T 4Port Switch iConverter 4GT Ethernet VLAN Univ
SKU #8482-4-E
Omnitron iConverter 8482-4-E 4GT Ethernet Switch - 4 Ports - Gigabit Ethernet, Fast Ethernet - 10/100/1000Base-T - 2 Layer Supported - Wall Mountable - Lifetime Limited Warranty
Typically Ships in 15 to 20 Business Days
Part Number
8482-4-E
Omnitron Systems iConverter 8482-4-E 4GT Ethernet Switch - 4 Ports - Gigabit Ethernet, Fast Ethernet - 10/100/1000Base-T - 2 Layer Supported - Wall Mountable - Lifetime Limited Warranty
The iConverter 4GT is a four-port 10/100/1000 Ethernet switch. It is available as a compact unmanaged standalone unit or a managed chassis plug-in module.
The four RJ-45 ports support 10/100/1000Mbps, Half/Full-Duplex, and auto-negotiation. These features are configurable using DIP switches or through software management. The 4GT supports RJ-45 auto-crossover (MDI/MDI-X) on all four ports, eliminating the need for a crossover cable and facilitating connectivity to different types of Ethernet equipment.
The 4GT supports traffic prioritization with strict priority queuing. Incoming frames are assigned to one of four egress queues based on Class of Service (CoS) P-bit value. This allows high priority traffic, such as voice traffic, to egress the network with no impact from lower priority traffic during congestion.
Features
- Built-in power supply to ensure all components are being supplied with accurate voltage
- With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
- With Wall mounting feature, you can conveniently install the switch while keeping the wires and cables organised
- The unmanaged switch provides a quick, easy and cost-saving way to add wired networking to your home, office or small business; no intervention needed
- Featuring Fast Ethernet ports to speed up the transfer rate up to 100mb/sec of large files and digital assets across your network
- Quickly and easily set up a wired network with 4 networking ports
- Effectively increases available bandwidth on your network
Management & Protocols
| Manageable | No |
Network & Communication
| Layer Supported | 2 |
Miscellaneous
| Package Contents |
|
| Country of Origin | United States |
General Information
| Product Type | Ethernet Switch |
| Manufacturer Part Number | 8482-4-E |
| Manufacturer Website Address | http://www.omnitron-systems.com |
| Manufacturer | Omnitron Systems |
| Product Model | 8482-4-E |
| Product Name | iConverter 8482-4-E 4GT Ethernet Switch |
| Product Line | iConverter |
| Brand Name | Omnitron Systems |
Power Description
| Power Source | Power Supply |
| Redundant Power Supply Supported | Yes |
Interfaces/Ports
| Number of Network (RJ-45) Ports | 4 |
| Total Number of Network Ports | 4 |
| Port/Expansion Slot Details | 4 x Gigabit Ethernet Network |
Media & Performance
| Network Technology | 10/100/1000Base-T |
| Ethernet Technology | Gigabit Ethernet |
| Fast Ethernet |
Physical Characteristics
| Weight (Approximate) | 1 lb |
| Form Factor | Wall Mountable |
| Width | 3.8" |
| Depth | 4.8" |
| Manufacturer | Omnitron Systems |
|---|---|
| Barcode | 0800975024939 |
| Product Series | Omnitron Systems iConverter Multi-Service Platform |
| Product Type | Ethernet Switches |
| Warranty Notes | Free access to 24/7/365 Omnitron Technical Support |
