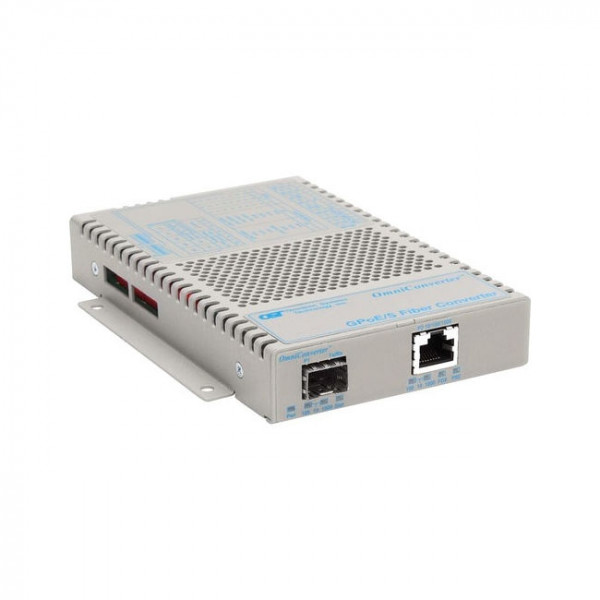

OST 10/100/1000 / 1000X No Pwr Cord OmniConverter GPoE/S 1X SFP Port
SKU #9419-0-12
Omnitron OmniConverter 10/100/1000 PoE Gigabit Ethernet Fibre Media Converter Switch RJ45 SFP - 1 x 10/100/1000BASE-T - 1 x 100/1000BASE-X (SFP) - Univ. AC Powered - Lifetime Warranty
Typically Ships in 15 to 20 Business Days
Part Number
9419-0-12
OmniConverter 10/100/1000 PoE Gigabit Ethernet Fibre Media Converter Switch RJ45 SFP - 1 x 10/100/1000BASE-T; 1 x 100/1000BASE-X (SFP); Univ. AC Powered; Lifetime Warranty
The OmniConverter GPoE/S are multi-port media converters that convert 10/100/1000BASE-T UTP to 1000BASE-X or 100BASE-FX fibre and support Power-over-Ethernet (802.3af PoE). Classified as Power Sourcing Equipment (PSE), they can provide power to one or two Powered Devices (PDs) using standard UTP cables that carry the Ethernet data.The OmniConverter functions as a PoE mini-switch and supports a variety of port configurations, including single or dual RJ-45 and SFP ports.
The RJ-45 ports can power PDs such as VoIP phones, wireless access points, network cameras, building access and automation equipment. The Omniconverter is especially useful at powering PDs in hard-to-reach locations with limited access to AC power outlets (ceilings, closets, etc.). The cost of bringing electrical power to each device is eliminated by powering the equipment through the UTP cable.
- Supports IEEE 802.3af PoE standards on one or two RJ-45 copper ports
- Supports 1000BASE-X fixed-fibre and 1000BASE-X or 100BASE-FX SFP transceivers
- Redundant protected fibre link option (using dual SFP ports models)
- Compatible with legacy pre-IEEE standard powered devices
- Configurable PoE power reset
- Available in AC and DC models
- Integrated wall mount brackets
- Commercial (0" to 50"C), wide (-40" to 60"C) and extended (-40" to 75"C) operating temperature ranges
- Lifetime Warranty and free 24/7 Technical Support
Features
- For efficient encoding/decoding of data into light pulses and then sending them to the other end as electrical signals for a dependable photoelectric conversion
- Connect different types of media within a network with this single port
- With 10/100/1000Base-T technology get up to 1000Mbps data transfer rate over optical fibre cable
- With Wall mounting feature, you can conveniently install the device while keeping the wires and cables organised
- Supports optical fibre cable for durable performance, minimal signal loss, and fast data transfers to greater distances
Media & Performance
| Media Type Supported | Optical Fibre |
| Twisted Pair |
I/O Expansions
| Expansion Slot Type | SFP |
| Number of SFP Slots | 1 |
| Total Number of Expansion Slots | 1.0 |
Interfaces/Ports
| Network (RJ-45) | Yes |
| Number of PoE (RJ-45) Ports | 1 |
| Total Number of Ports | 1 |
Power Description
| Input Voltage | 240 V AC |
| 120 V AC | |
| 240 V AC | |
| 120 V AC |
Network & Communication
| Network Technology | 1000Base-ZX |
| 1000Base-X | |
| 1000Base-SX/LX | |
| 1000Base-SX | |
| 1000Base-LX10 | |
| 1000Base-LX/SX | |
| 100Base-X | |
| 1000Base-LX | |
| 1000Base-BX10-U | |
| 1000Base-BX10-D | |
| 1000Base-BX-U | |
| 1000Base-BX-D | |
| 1000Base-BX | |
| 10/100/1000Base-T | |
| 1000Base-LX/LH | |
| Ethernet Technology | Fast Ethernet |
| Gigabit Ethernet | |
| Ethernet |
Miscellaneous
| Additional Information |
Input Voltage: |
| Package Contents |
|
| Certifications & Standards |
|
| Country of Origin | United States |
| Environmentally Friendly | Yes |
Physical Characteristics
| Weight (Approximate) | 1 lb |
| Form Factor | External |
| Desktop | |
| Rack-mountable | |
| Wall Mountable | |
| Height | 1" |
| Width | 4.5" |
| Depth | 6" |
General Information
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | 9419-0-12 |
| Manufacturer Website Address | http://www.omnitron-systems.com |
| Manufacturer | Omnitron Systems |
| Product Model | 9419-0-x |
| Product Name | OmniConverter GPoE/S PoE SFP Univ. AC Powered |
| Package Type | Retail |
| Product Line | OmniConverter |
| Product Series | GPoE/S |
| Brand Name | Omnitron Systems |
| Manufacturer | Omnitron Systems |
|---|---|
| Barcode | 0800975046054 |
| Product Series | Omnitron Systems OmniConverter PoE Media Converters |
| Product Type | Media Converters |
| Industry | Service and Content Providers, Carriers, Telecommunications, Carriers, Service and Content Providers, Campus Networks, Data Centres, Enterprise Networks, Financial Institutions, Government and Defence Communications, Aerospace and Defence, Broadcast, Mining, Off-shore and Remote, Security, Transportation, Utilities |
| Applications | HetNet (Heterogeneous Network), Indoor/Outdoor DAS (Distributed Antenna Systems), Network Infrastructure, Network Core and Edge |
| Warranty Notes | Free access to 24/7/365 Omnitron Technical Support |
